Set up Google

Gmail, Calendar, Sheets, Docs, Drive and Forms take no API key. Google issues credentials only to an app you have registered, so before the first call you register one: a Cloud project, a consent screen and an OAuth client. It is free, it takes about ten minutes, and you do it once — the same client serves all six packs. Every console link below opens in a new tab. Keep this page in the old one and come back to it after each step.

Want to see one call work before any of this? Google’s OAuth Playground signs you in with its own client: tick Gmail API v1 → https://www.googleapis.com/auth/gmail.modify, Authorize APIs, Exchange authorization code for tokens, and copy the access token into GOOGLE_ACCESS_TOKEN. Every Google pack reads it. It expires in an hour and nothing can renew it, which is fine for a look and wrong for anything you leave running — that is what the steps below are for.

The console

Create a project

Open console.cloud.google.com/projectcreate, name it anything — charter will do — and Create.Already have one? Pick it from the project picker at the top of the console instead. Everything below happens inside whichever project is selected there, so check it before each step.

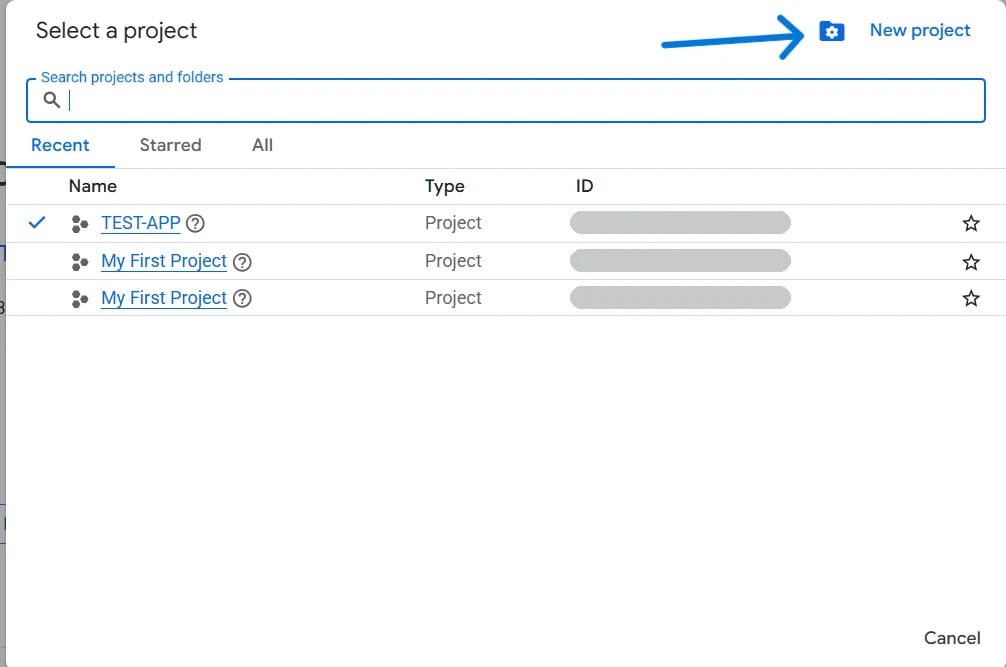

The Google Cloud project picker, with an arrow pointing at New project in its top-right corner.

Turn on the APIs you will call

Each pack calls one Google API, and an API is off until you turn it on. Open the ones you need and click Enable:

Pack	API
`gmail`	Gmail API	Enable
`gcalendar`	Google Calendar API	Enable
`gsheets`	Google Sheets API	Enable
`gdocs`	Google Docs API	Enable
`gdrive`	Google Drive API	Enable
`gforms`	Google Forms API	Enable

Or all six at once: it asks which project, then turns on the lot.

The Gmail API's page in the API library, with an arrow pointing at the blue Enable button.

Skip this and the first call answers 403 with “Gmail API has not been used in project N before or it is disabled”. It reads like a permission problem and is not one.

Set up the consent screen

Open console.cloud.google.com/auth/overview — the Google Auth Platform — and click Get started.

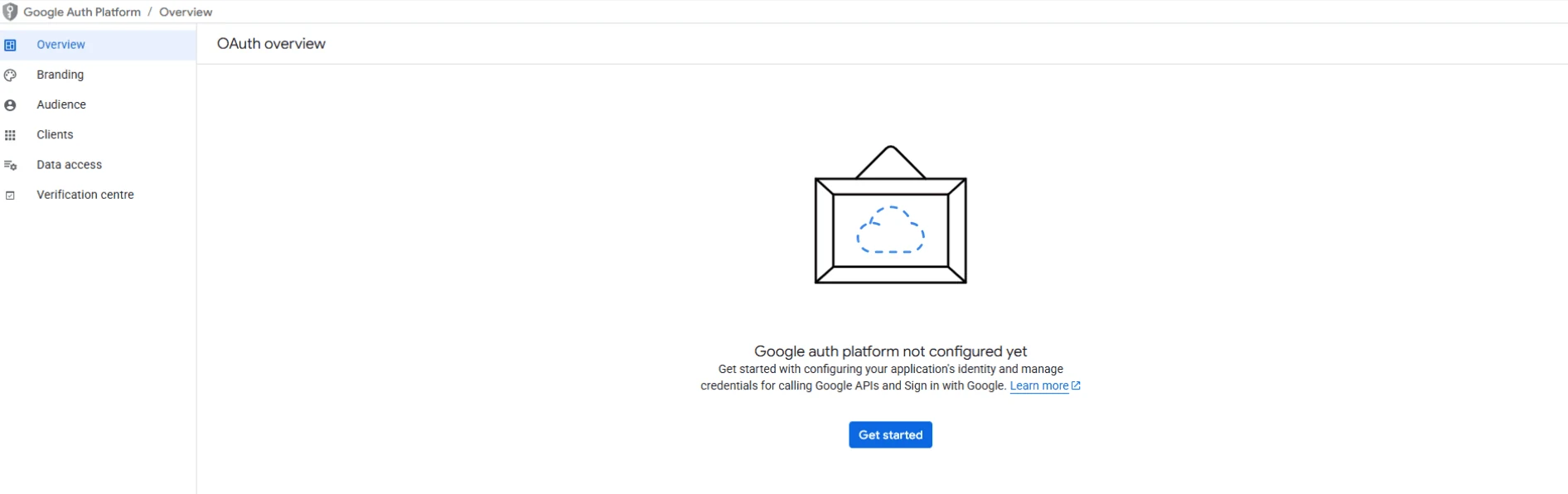

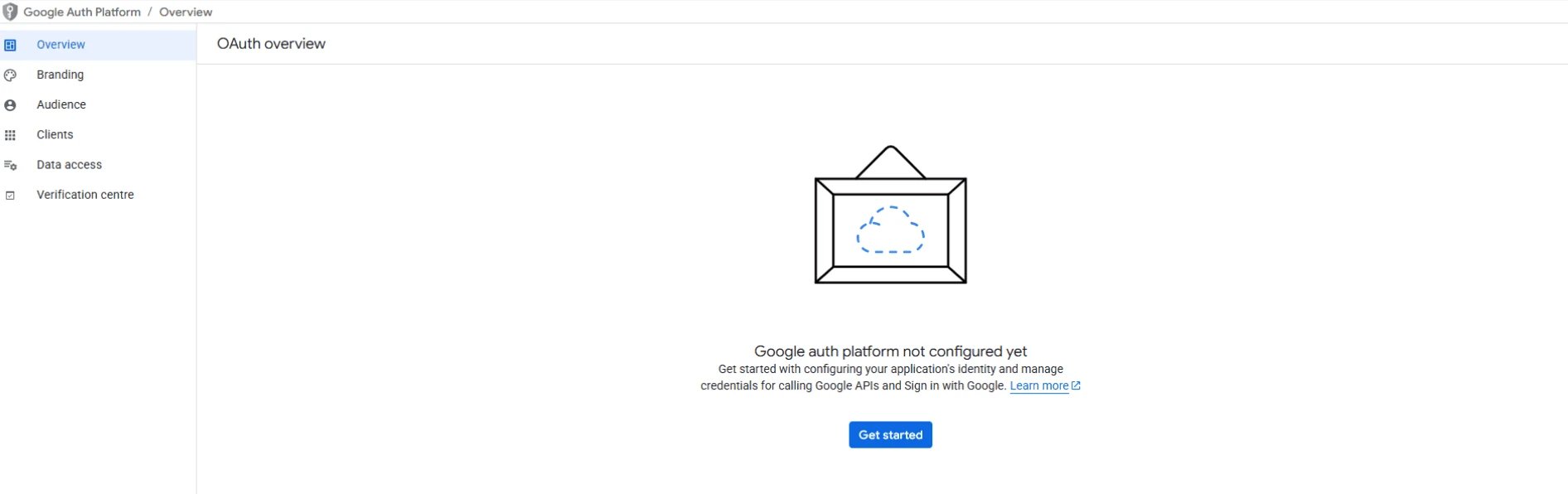

Google Auth Platform's overview page saying the platform is not configured yet, with a Get started button.

A four-part form follows:

App information — an app name, which is what the consent screen will show you, and a support email, which can be your own.
Audience — External. Internal is offered only inside a Google Workspace organisation; if you see it and every account you will connect belongs to that organisation, choose it, and step 6 does not apply to you.
Contact information — your email again.
Finish — agree to the policy, then Create.

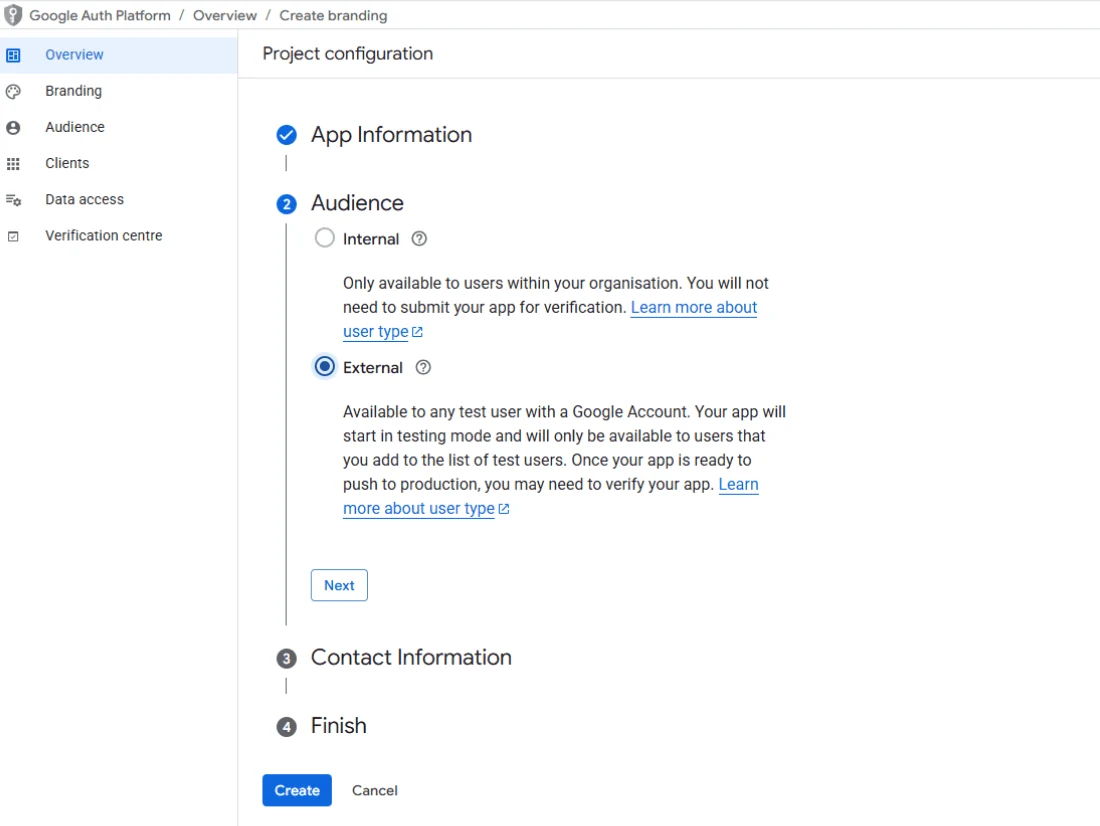

The Audience part of the form, with External selected and Internal left unselected.

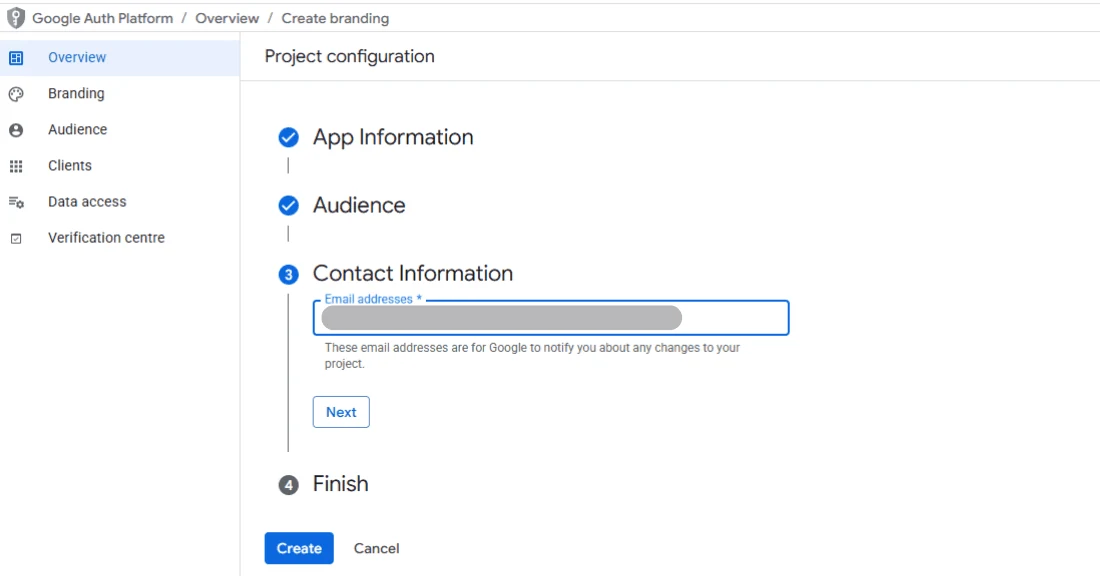

The Contact information part of the form, with an email address entered.

Create the OAuth client

Back on the overview, click Create OAuth client — or go straight to console.cloud.google.com/auth/clients/create.

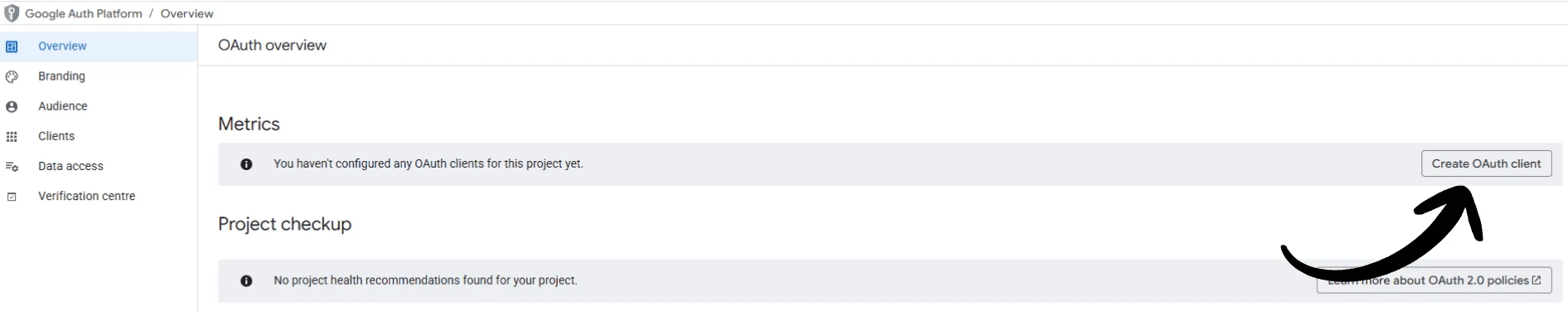

The OAuth overview after the consent screen is created, with an arrow pointing at the Create OAuth client button.

The application type decides where Google may send the browser after consent, and it is the one setting here that depends on what you are building:

Just you: Desktop app
Your users: Web application

Application type: Desktop app, any name, Create.A desktop client accepts a redirect to localhost on any port, which is what lets the script in step 7 catch Google’s answer with nothing registered.

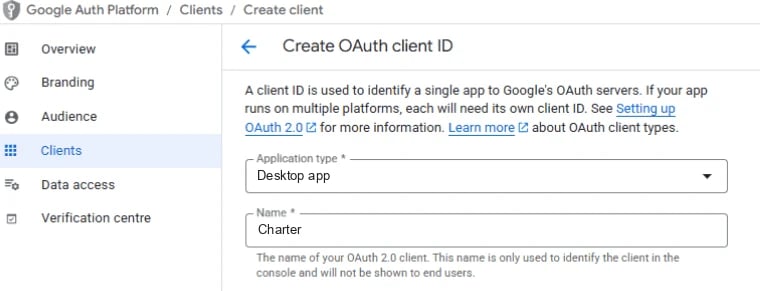

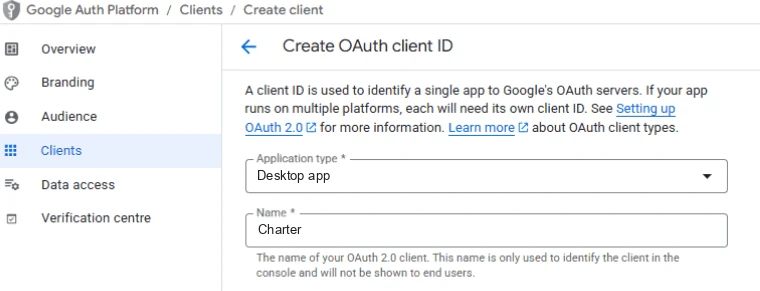

The Create OAuth client ID form, with Application type set to Desktop app and the name Charter.

Application type: Web application, then under Authorised redirect URIs the callback route in your app — exactly, scheme and path included. Authorised JavaScript origins only matter when a browser page calls Google itself; Charter’s flow runs on your server, so they can stay empty.To run step 7 against this client too, add http://localhost:8765/callback as a second redirect URI.

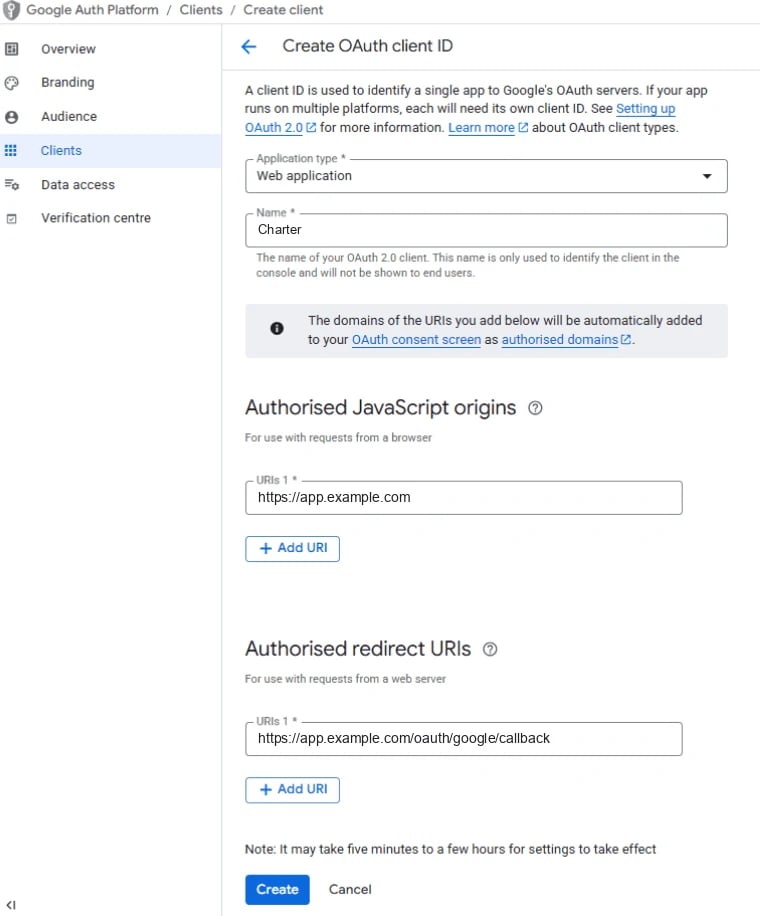

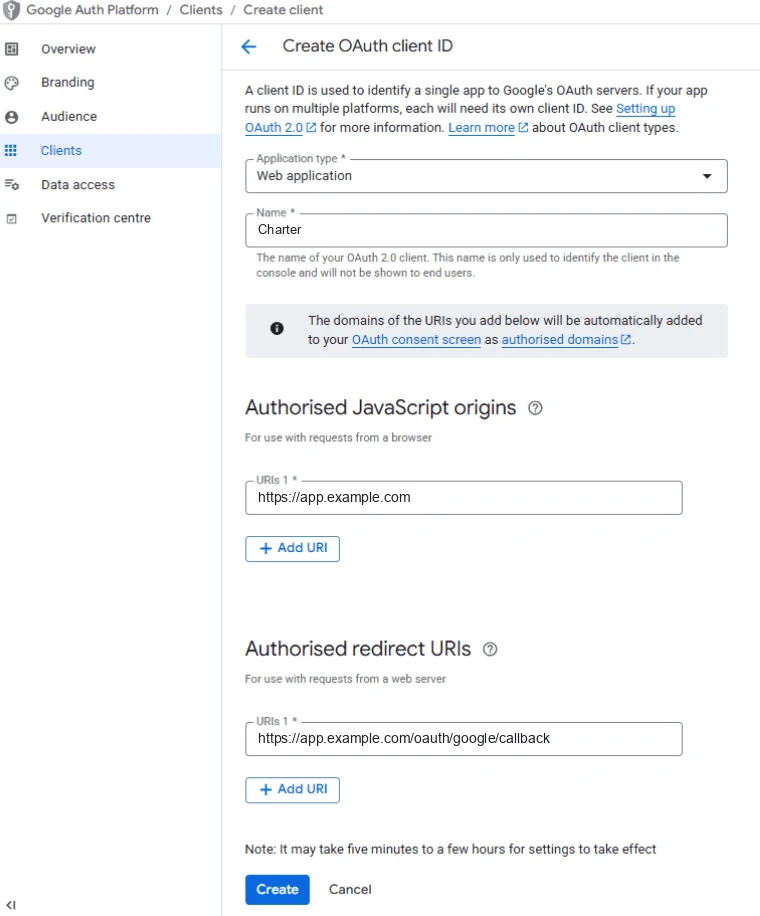

The Create OAuth client ID form for a Web application, with https://app.example.com as the JavaScript origin and https://app.example.com/oauth/google/callback as the redirect URI.

Download the client JSON before you click OK

Google shows a dialog with the client ID and a Download JSON link. Click the link before OK. The file holds the client ID and the client secret together — client_id and client_secret, under installed — and step 7 needs both.

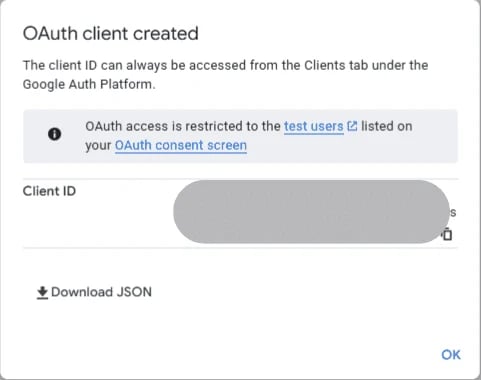

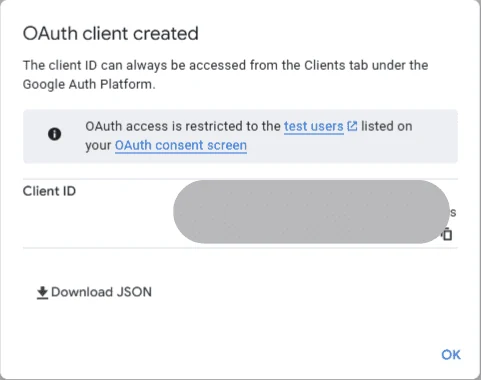

The OAuth client created dialog: the client ID, a Download JSON link, and an OK button.

Clicked OK first? Open the client from Clients and use Add secret: a new secret is shown in full once, when it is made, so copy it then.

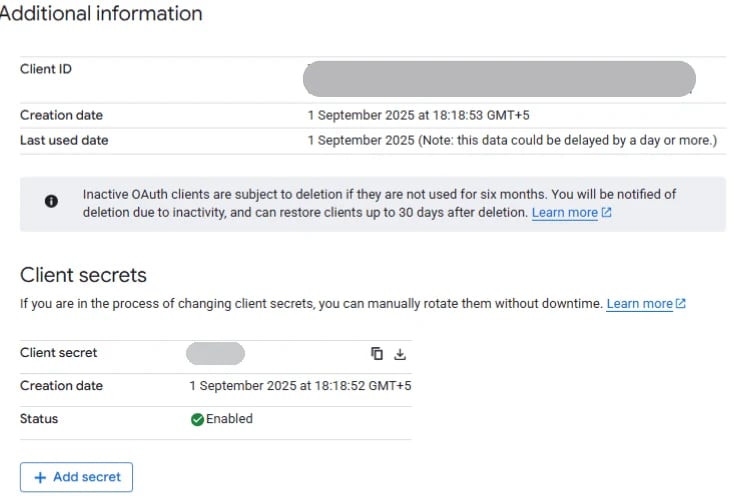

A client's details page: the client ID, a Client secrets section with one secret shown masked, and an Add secret button.

Publish the app

Open console.cloud.google.com/auth/audience and click Publish app.

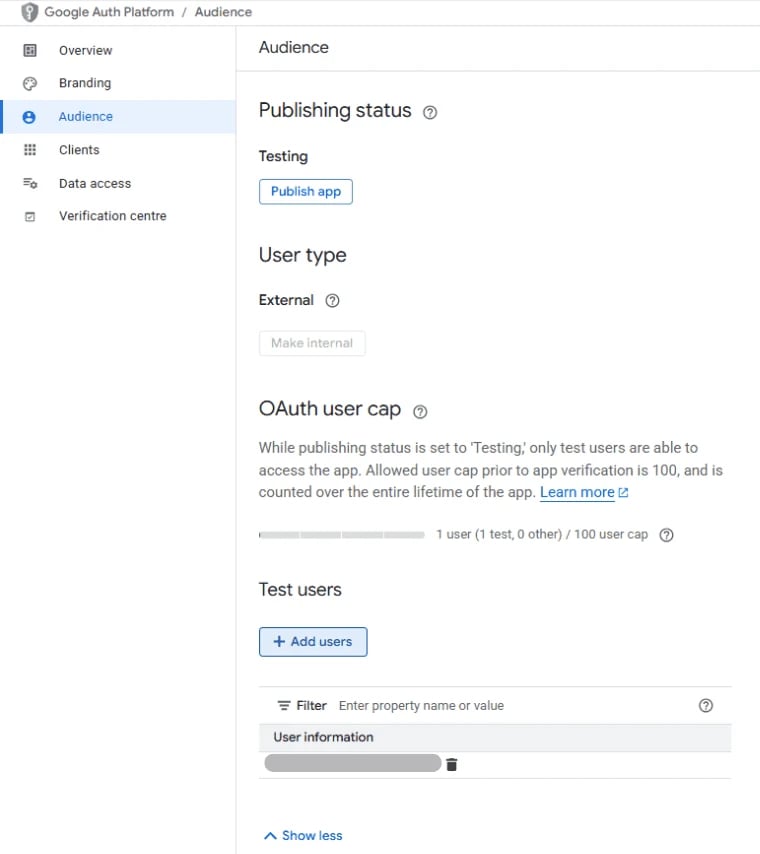

The Audience page: publishing status Testing with a Publish app button, user type External, and an Add users button under Test users.

This decides whether the token survives the week. An app left in Testing gets refresh tokens that expire after seven days — the works-all-week, invalid_grant-on-Monday symptom, which is this setting rather than a bug in your storage. It also refuses consent to anyone not listed under Test users.Published, consent shows “Google hasn’t verified this app”: click Advanced, then Go to your app’s name. For your own account that warning is the whole cost. Verification — and for a restricted scope like gmail.modify, a security assessment — is what letting other people connect eventually needs, and it takes weeks; check Google’s current rules before planning around it.Rather stay in Testing? Then Add users with your own address, and expect to repeat step 7 every week.

The grant

Connect your account

examples/connect_google.py runs the consent flow once, from a terminal. Give it the two values from the file in step 5:

export GOOGLE_CLIENT_ID=1234-abc.apps.googleusercontent.com
export GOOGLE_CLIENT_SECRET=GOCSPX-...

curl -O https://raw.githubusercontent.com/r28ai/charter/main/examples/connect_google.py
uv run --with charter-ai python connect_google.py

It prints a URL. Open it, pick your account, click through the unverified-app warning, and leave every box ticked: Google lets you untick a permission and still finishes the flow, and the tools that needed it then answer 403. The script names any you dropped. The tab says Connected, and the terminal prints the third value:

export GOOGLE_REFRESH_TOKEN=1//0g...

It asks for every scope the six packs’ tools declare, so one grant covers all of them; take a pack out of the tuple in main() to ask for less. The scopes are listed on Google’s provider page, and scopes_for is the call that reads them off the tools.The script is not a library feature. It is a page you can read, and only two of its calls are Charter’s: flow.authorize() builds the URL with PKCE and a state, and flow.exchange() trades the code for tokens. Everything between them — the redirect, the wait, the callback — is the script’s, and in a web app it would be your framework’s: getting the grant.

Store the three values

Put the three export lines — the two you typed and the one printed — in your shell profile, a .env file, or your secret manager. That is the whole configuration: every Google pack, and the MCP server, renews an access token from them on its own.Not the access token. It lasts about an hour, and the client fetches a fresh one whenever it needs one.Google does not rotate refresh tokens, so the value printed is the value you keep — a refresh returns a new access token and the same refresh token. Slack and GitHub do rotate, and a server that does needs the on_refresh hook to write the new one back, which is what varies between servers.To build the client yourself instead, an OAuth2Client turns those three values into a credential provider: it fetches an access token, caches it, and renews it before it lapses.

google_client.py

from charter.auth import OAuth2Client
from charter.packs import gcalendar, gdocs, gdrive, gforms, gmail, gsheets

google = OAuth2Client(
    GOOGLE,  # the server constant, from /auth/providers/google
    client_id=os.environ["GOOGLE_CLIENT_ID"],
    client_secret=os.environ["GOOGLE_CLIENT_SECRET"],
    refresh_token=os.environ["GOOGLE_REFRESH_TOKEN"],
)

for pack in (gmail, gcalendar, gsheets, gdocs, gdrive, gforms):
    pack.configure(credential_provider=google)

One client across six packs on purpose: the access token is fetched once and cached once, so a run that sends a mail, files a calendar event and appends a row spends one refresh rather than three.

Verify

A refresh token is not proof that the scopes are right — that failure surfaces as a 403 from the API, hours later, inside an agent. One call settles it now:

verify_scopes.py

import asyncio

async def main():
    labels = await gmail.labels_list.ainvoke(userId="me")

    print([label["name"] for label in labels["labels"]])

asyncio.run(main())

INBOX, SENT, and whatever else you have made. It costs 1 unit of Gmail’s quota, the cheapest call in the pack.That is the loop closed: a client you registered, a grant you own, a token the runtime renews without being asked, and a response that came back. Hand gmail.TOOLS to an adapter and the same credential serves every tool in all six packs.

When it does not work

403: “… API has not been used in project N before or it is disabled”

The API for that pack is off in the project the client belongs to — step 2. Enabling takes a minute to reach the API. If it is on, check the project picker: the client and the API have to be in the same project.

“Access blocked: … has not completed the Google verification process”, or access_denied

The app is in Testing and the account you picked is not a test user. Publish it, or add the address under Test users — step 6.

invalid_grant, about a week after it last worked

The app was in Testing when the token was issued, and testing tokens expire after seven days. Publish it, then run step 7 again; the new token does not expire. A grant revoked at myaccount.google.com/permissions answers the same way, as does a client deleted for six months of disuse.

redirect_uri_mismatch

A web client is being sent to a redirect URI it does not list, character for character. Add it in the client’s settings, or use a Desktop app client for the script, which needs nothing registered.

403: “Request had insufficient authentication scopes”

The grant does not cover the tool. Either a box was unticked on the consent screen, or the pack was added after the grant was issued — a grant covers the scopes it was issued for and nothing else. Run step 7 again with that pack in the script’s tuple.

“Google hasn't verified this app”

Expected for an app you published yourself. Advanced → Go to your app’s name. It goes away only with verification, which you need when other people connect, not for your own account.

Your users’ accounts

The console steps are the same, with a Web application client (step 4’s second tab). What changes is everything after: the consent route lives in your app, each user’s grant is stored against them, and many users means verification. Getting the grant is the route; serving many users is the per-user cache.

What this does not cover

Named rather than left for you to discover:

Rotation. Google hands back the same refresh token; Slack and GitHub do not. What varies between servers.
Revocation. A grant killed at myaccount.google.com/permissions answers invalid_grant, and Charter then stops asking for 60 seconds rather than hammering a rate-limited endpoint — refresh behaviour.
The rest of Google’s silent failures — the hundred-refresh-token cap, what login_hint does and does not guarantee — what fails silently.

Google — the server constant, every scope, the hundred-token cap and what else fails silently
Getting the grant — the same two protocol steps, inside your app
Authorization servers — refresh, caching, many users
Every pack — what the other packs need, in one table
Credentials — every credential provider, as reference
